PostPosted: Sat May 24, 2014 5:06 pm
Offline
User avatar

Joined: Sun May 11, 2014 9:21 pm
Posts: 97
Europeans want to type accented letters.
While waiting for full Unicode support, I implement codepage 1252 (Western Latin) myself.
To illustrate this, I post my "KeyView" application to view typed text in CP1252.
I still need to work out the dead key combinations (ë, ò, û, . . .).
I will work on a method to choose an ascii code by using Alt+nn (DOS users know what I mean).
Later I will work out a "Character Picker", to pick any ascii character from an ascii chart.

KeyView is my first (unfinished) Kolibri application.
I use a built-in keymap for a Belgian AZERTY keyboard (I have no other keyboard).
Feedback is appreciated.


Attachments:
File comment: Application to view typed tekst in Western Latin
KeyView [11.65 KiB]
Downloaded 112 times

_________________
Greetings from Seppe
Top

PostPosted: Sat May 24, 2014 6:22 pm
Offline
Mentor/Kernel Developer
User avatar

Joined: Fri Jun 30, 2006 9:01 am
Posts: 1248
We already have a "character picker" called ASCIIVJU: viewtopic.php?f=42&t=1455

Your applications seems to work good, only problem I found was that € symbol (placed on the e key on our keyboards) does not work.
Why do you use built in keymap? I think nobody besides you and me here have belgian keyboards :)

_________________
"Any intelligent fool can make things bigger, more complex, and more violent. It takes a touch of genius -- and a lot of courage -- to move in the opposite direction." Albert Einstein


Top

PostPosted: Sun May 25, 2014 1:12 pm
Offline
User avatar

Joined: Sun May 11, 2014 9:21 pm
Posts: 97
hidnplayr wrote:
We already have a "character picker" called ASCIIVJU: viewtopic.php?f=42&t=1455

ASCIIVJU does not show the western codepage and it does not copy the picked characters to the clipboard.
The source code might help. Do you know if the source code is available?

_________________
Greetings from Seppe


Top

PostPosted: Sun May 25, 2014 1:29 pm
Offline
Mentor/Kernel Developer
User avatar

Joined: Fri Jun 30, 2006 9:01 am
Posts: 1248
As almost all programs, it's source code is on our SVN server :)

http://websvn.kolibrios.org/listing.php ... 900f51c0c3

_________________
"Any intelligent fool can make things bigger, more complex, and more violent. It takes a touch of genius -- and a lot of courage -- to move in the opposite direction." Albert Einstein


Top

PostPosted: Sun May 25, 2014 3:21 pm
Offline
User avatar

Joined: Sun May 11, 2014 9:21 pm
Posts: 97
hidnplayr wrote:
Why do you use built in keymap? I think nobody besides you and me here have Belgian keyboards :)

There are many keyboard layouts in Europe, and the setup.asm routine will need often updates.
The built-in keymap will be used to enter and test a newly created keyboard layout.
Another button will write the table as Fasm code to disk, ready to be included in the setup.asm source.

I suggest to apply Microsoft's country codes using 2 letters + an optional third letter for keyboard variants.
See http://support.microsoft.com/kb/262283
The current keyboard codes (0 to 7) can remain operational (legacy).

I appreciate feedback.

_________________
Greetings from Seppe


Top

PostPosted: Mon May 26, 2014 12:38 pm
Offline
User avatar

Joined: Sun May 11, 2014 9:21 pm
Posts: 97
seppe wrote:
I still need to work out the dead key combinations (ë, ò, û, . . .).

Here is the new version of my "KeyView" application with functional deadkeys.
It works for all European keyboards when used with CP1252.
The € symbol works now.

Request for hidnplayer : Please change scancode 0x1A from 0x5E to 0x88.

In my opinion, dead key handling should be done by the keyboard driver(s).
I give you the list and the flowchart.

To help all European KolibriOS users, I consider to offer library functions for displaying CP1252 text.
I might add a function for keyboard input with dead-key handling.


Attachments:

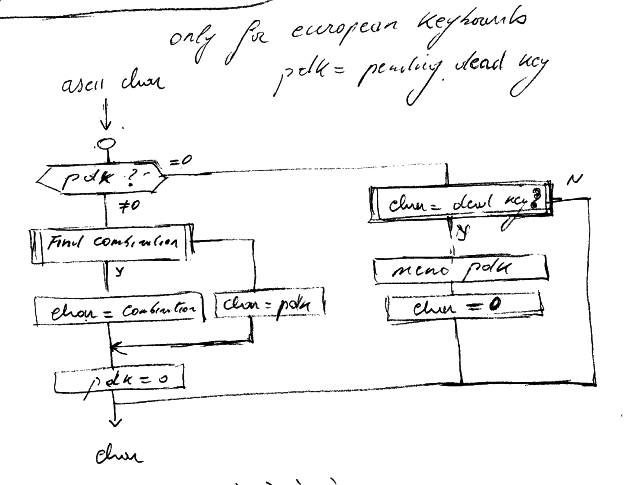

File comment: flow for dead-key handling
deadkeyFlow.jpg [ 38.03 KiB | Viewed 2160 times ]
File comment: List of 51 deadkey combinations for European keyboards
deadkeylist.rtf [1.53 KiB]
Downloaded 85 times
File comment: New version of keyView with dead-key handling.
KeyView [12.08 KiB]
Downloaded 82 times

_________________
Greetings from Seppe
Top

PostPosted: Mon May 26, 2014 2:15 pm
Offline
Mentor/Kernel Developer
User avatar

Joined: Fri Jun 30, 2006 9:01 am
Posts: 1248
Why not show us your code for dead key handling so it doesnt need to be re-invented to be put into the kernel :)
It seems your application 'KeyView' was written in C (compiled with GCC?) but it may still help.

PS: scancode 0x1A changed from 0x5E to 0x88 in #4942

_________________
"Any intelligent fool can make things bigger, more complex, and more violent. It takes a touch of genius -- and a lot of courage -- to move in the opposite direction." Albert Einstein


Top

PostPosted: Tue May 27, 2014 12:44 am
Offline
User avatar

Joined: Sun May 11, 2014 9:21 pm
Posts: 97
I give a new enhanced version of my KeyView with a character chart for both systemfont and Western Latin.
The tab key toggles between both fonts. The ASCII and scancode is shown for in keyed characters.
The application is not finished, but I already give it so maybe you can help me with the following:
After typing some special key combinations, the NumLocked keys do not return numbers anymore.
I can't pinpoint it. It makes me crazy. Any ideas?
hidnplayr wrote:
scancode 0x1A changed from 0x5E to 0x88 in #4942
Thank you. All dead-key combinations are perfect.
hidnplayr wrote:
Why not show us your code for dead key handling so it doesn't need to be re-invented to be put into the kernel.
It seems your application 'KeyView' was written in C (compiled with GCC?) but it may still help.

I send you my source (KeyView.rtf). Best viewed with WordPad using Euphemia 9 and Arial 8.
The language is Mas (Modern assembly). I doubt that it is useful to you. Maybe one day . . .
Anyway, the dead-key implementation makes no sense as long as CP1252 is not around.
When KeyView is finished, I'll start working on a library for Europeans.


Attachments:
File comment: source for keyview application (Mas)
KeyView.rtf [18.4 KiB]
Downloaded 86 times
File comment: KeyView application 26.05.2014
KeyView [13.04 KiB]
Downloaded 74 times

_________________
Greetings from Seppe
Top

PostPosted: Tue May 27, 2014 1:19 am
Offline
Mentor/Kernel Developer
User avatar

Joined: Fri Jun 30, 2006 9:01 am
Posts: 1248
Wow, that is some strange looking source code, the binary looked much clearer than this mess :)

It seems to me that the keys, 4, 6, 8 and 2 always function as arrow keys, while 1, 3, 5, 7 and 9 work almost like they should. (pressing 5 returns number 7 for example)

_________________
"Any intelligent fool can make things bigger, more complex, and more violent. It takes a touch of genius -- and a lot of courage -- to move in the opposite direction." Albert Einstein


Top
